PYNQ-ZU
University Program

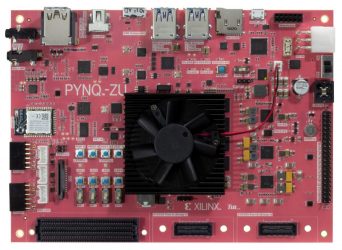

TUL PYNQ?-ZU board, based on Xilinx Zynq UltraScale+ MPSoC, is designed for the Xilinx University Program to support the Xilinx PYNQ (Python Productivity for Zynq) open source framework (please refer to the PYNQ project webpage at www.pynq.io) and embedded systems development.
特色說明
Zynq UltraScale+ XCZU5EG-1SFVC784 MPSoC
- Quad core ARM Cortex-A53, Dual R5 processors
- DDR4 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
Memory
- 4GB DDR4 2400R (64 bits wide)
- MicroSD slot
USB and JTAG
- Micro USB-JTAG programming circuitry
- Micro USB-UART bridge
- USB 3.0 OTG PHY (supports host only)
- USB Composite 3.0
下一階段的系統
歡迎與我們討論系統開發需求
