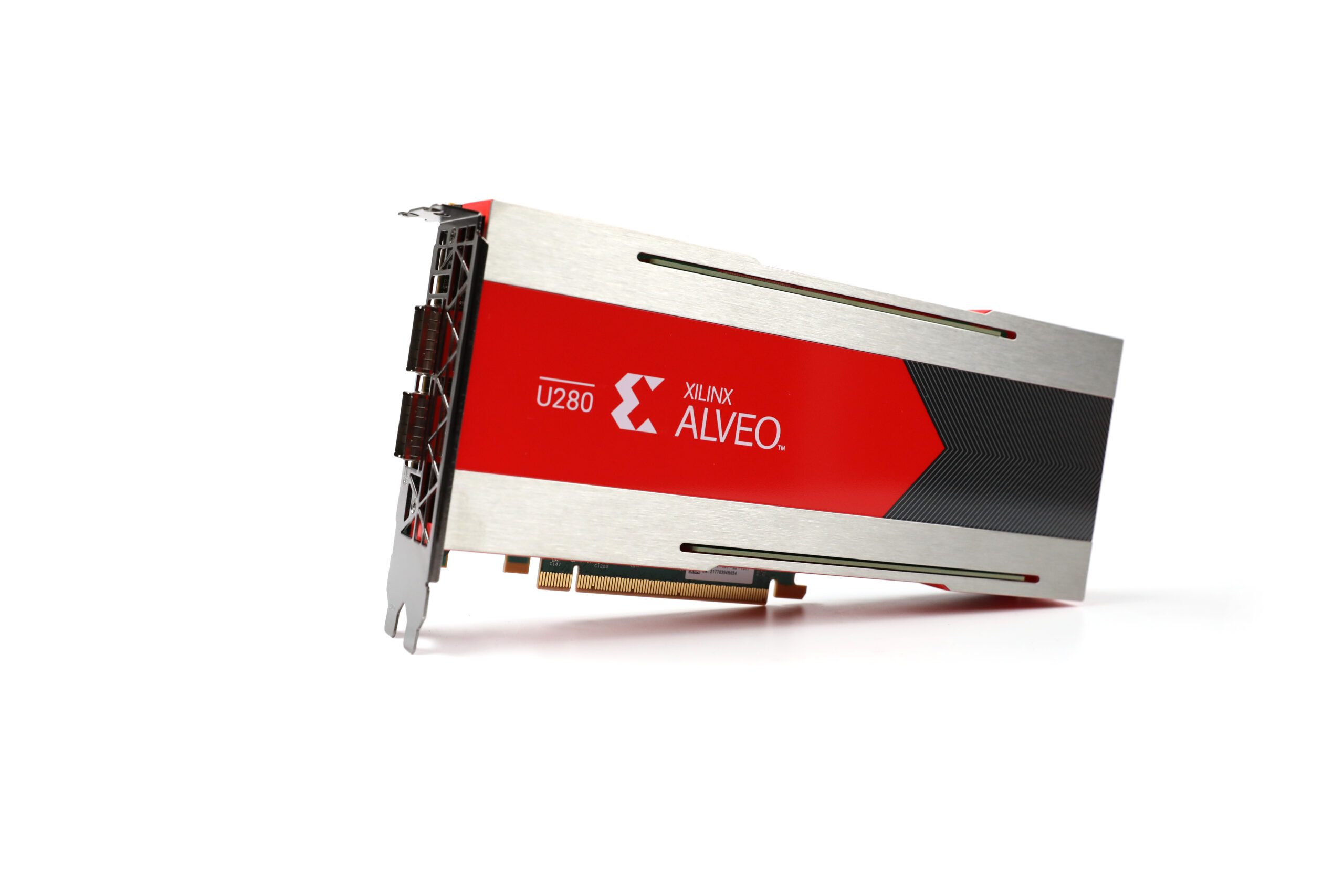

AMD Alveo™ U280 Data Center accelerator cards are designed to meet the constantly changing needs of the modern Data Center. Built on the AMD 16nm UltraScale+™ architecture, Alveo U280 offers 8GB of HBM2 460 GB/s bandwidth to provide high-performance, adaptable acceleration for memory-bound, compute intensive applications including database, analytics, and machine learning inference. The U280 acceleration card includes PCI Express 4.0 support to leverage the latest server interconnect infrastructure for high-bandwidth host processors.

Alveo accelerator cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware, and reduce overall cost of ownership.

These production Alveo U280 Data Center Accelerator cards can be volume deployed in data centers or used for application development and prototyping. Only the U280 active cards include a USB for developers.

▎Key Features

Fast – Highest Performance

• High performance compute resources combined with high bandwidth memory for over 8x improvement in database workload performance

Adaptable – Accelerate Any Workload

• Database search to natural language processing to any workload using the same accelerator card. As workload algorithms evolve, use reconfigurable hardware to adapt faster than fixed-function accelerator card product cycles

Accessible – Cloud <-> On-Premises Mobility

• Deploy solutions on the cloud or on-premises interchangeably, scalable to application requirements

▎Specification編輯Card SpecificationsU280 Production Thermal CoolingPassiveActive Compute INT8 TOPs (peak)24.524.5 Dimensions WidthDual SlotDual Slot Form FactorFull Height, 3/4 LengthFull Height, Full Length DRAM Memory HBM2 Total Capacity8GB8GB HBM2 Total Bandwidth460GB/s460GB/s DDR Format2x 16GB 72b DIMM DDR42x 16GB 72b DIMM DDR4 DDR Memory Capacity32GB32GB DDR Total Bandwidth38GB/s38GB/s SRAM Memory Internal SRAM Capacity41MB41MB Internal SRAM Total Bandwidth30TB/s30TB/s Interfaces PCI ExpressGen4x8 with CCIXGen4x8 with CCIX Network Interfaces2x QSFP28 (100GbE)2x QSFP28 (100GbE) Logic Resources Look-up Tables (LUTs)1,079,0001,079,000 Power Maximum Total Power225W225W ▎Download

• https://www.xilinx.com/products/boards-and-kits/alveo/u280.html#specifications
