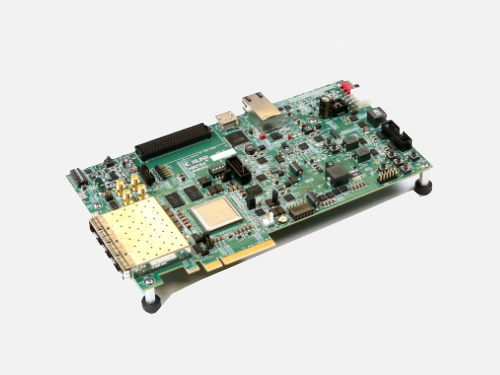

Gallery ▎Description The Kintex® UltraScale+™ FPGA KCU116 Evaluation Kit is ideal for evaluating key Kintex UltraScale+ features most notably 28Gbps transceiver performance. The Kintex UltraScale+ family provides the best price/performance/watt balance in a FinFET node, delivering the most cost-effective solution for high-end applications. ▎Key Features

4x zSFP+ cages to support 28Gbps GTY evaluation
DDR4 up to 32-bits
General purpose prototyping elements including FMC, HDMI, PMODs

PCIe Gen3 x8 compliant
PCIe Gen4 capable with 3rd party IP or custom IP

▎Specification 編輯Configuration

Onboard JTAG configuration circuitry to enable configuration over USB

Dual Quad-SPI flash memory provides 2×1 Gb of non-volatile storage

Communication & Networking

4x zSFP+ Cages

4x SMAs

UART To USB Bridge

RJ45 Ethernet connector supporting SGMII Ethernet communications at 10, 100, or 1000 Mb/s

PCIe Gen3x8 compliant and Gen4 capable

Expansion Connectors

FMC-HPC (Partial Population) connector (4 GTY Transceiver, 46 single-ended or 23 differential (23 LA pairs: LA[00:22]) user defined signals)

2x PMOD headers ( 1 male and 1 female)

Control & I/O

5X Directional Push Buttons

4X DIP Switches

PMBUS & System Controller

Memory

1 GB 32-bit DDR4 component memory (two [256 Mb x 16] devices) at 1333MHz / 2666Mbpsps

64MB (512Mb) Quad SPI Flash

Micro-SD Card Slot

Clocking

Dual Si570 Clock chips (User & GT)

SI5328 Jitter attenuating precision clock

2x SMA MGT input clocks

Display

HDMI video out

8x GPIO user LEDs

Power

12V wall adapter or ATX
