EK-U1-VCU128-G

分類：Zynq

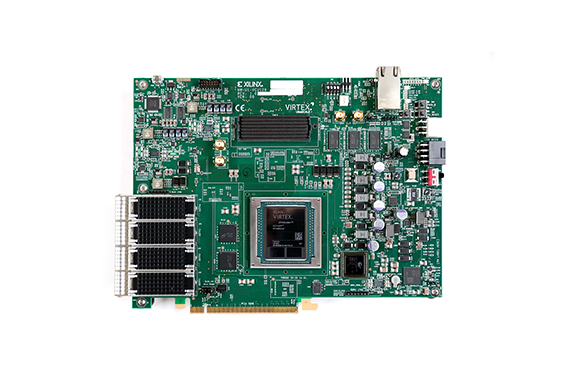

更多圖片▎產品介紹The VCU128 board incorporates the all new Xilinx Virtex® UltraScale+™ VU37P HBM FPGA that integrates 8GB of HBM DRAM adjacent to FPGA die to enable massive memory bandwidth and much smaller PCB footprint. Virtex UltraScale+ HBM FPGAs alleviate bandwidth bottlenecks and power consumption associated with using parallel memories, like DDR4, in compute, database, and network acceleration applications.The VCU128 evaluation kit is optimized for quickly prototyping applications using Virtex UltraScale+ HBM FPGAs.▎特色說明Massive Memory Bandwidth for compute intensive applications

• 8GB of integrated HBM
• Up to 460GB/s of HBM bandwidth
• Multiple external memory interfaces (RLDRAM3, QDR-IV, DDR4)

Flexible connectivity for broad applications

• Quad 32Gb/s QSFP28 interfaces
• PCIe® Gen3 x16 & Gen4 x8
• VITA 57.4 FMC+ interface
• 10/100/1000Mb/s Ethernet

▎產品規格Board SpecificationsValueLength9.5 inch (24.13 cm)Height7.53 inch (19.14 cm)Thickness (+/-5%)0.061 inch (0. 1549 cm)Operating Environmental Temperature0^◦C to +45^◦CStorage Environmental Temperature-25^◦C to +60^◦CMemoryDDR4 Component4.5 GB – 5 x (512 Mb x 16)QDR4 Component144 Mb – 1 x (4 Mb x 36)RLD3 Component288 MB – 2 x (1.125 Gb x 36)Communications & NetworkingQSFP28 Optical4Ethernet Port2PCIe® Gen3 x16 or Gen4 x81USB UARTYesDisplayDIP SwitchesYesLEDsYesPush ButtonsYesExpansion ConnectorsFMC+-HSPC Connector1Control & I/OIICYesPMBUSYesPower12V Wall AdapterYesATX Power CompatibleYes▎資源下載

• https://www.xilinx.com/products/boards-and-kits/vcu128.html#specifications
