Gallery ▎Description

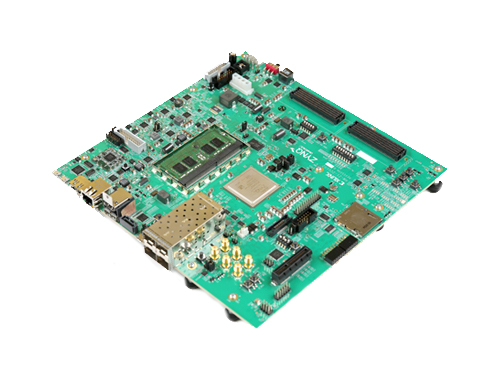

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features a Zynq® UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on Xilinx’s 16nm FinFET+ programmable logic fabric. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.

▎Key Features

• Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
• DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
• DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
• PCIe® Root Port Gen2 x4, USB3, Display Port, and SATA
• 4x SFP+ interfaces for Ethernet
• 2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals

▎Specification

Configuration

• Onboard JTAG configuration circuitry to enable configuration over USB
• Dual Quad-SPI flash memory
• Boot from SD card

Memory

• PS 4GB DDR4 64-bit SODIMM w/ ECC
• PL 512MB DDR4 component memory ([256 Mb x 16] devices) at 1200MHz / 2400Mbps DDR
• 8KB IIC EEPROM
• Dual 64MB Quad SPI flash
• SD card slot

Control & I/O

• 6x Directional Push Buttons (5x PL, 1x PS)
• DIP switches (8x PL)
• PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
• USB2/3 (MIO ULPI and 1 GTR)**

Expansion Connectors

• 2x FMC-HPC connectors (16 GTH Transceivers, 64 differential user defined signals)
• 2x PMOD headers
• IIC

Communication & Networking

• RGMII communications at 10, 100, or 1000 Mb/s. Serial GMII interface-supports a 1 Gb/s SGMII interface
• 4x SFP+ cage
• SMA GTH support (4x SMA Tx/Rx connectors)
• UART To USB bridge
• RJ45 Ethernet connector
• SATA (1 x GTR)**
• PCIe Gen2x4 Root Port**

Display

• HDMI video input and output (3 GTH)
• External Retimer device driving an HDMI output connector
• 9x GPIO user LEDs (8x PL, 1x PS)
• VESA DisplayPort 1.2 source-only controller supports up to two lanes of main link data at rates of 1.62 Gb/s, 2.70 Gb/s, or 5.40 Gb/s.

Clocking

• Programmable clocks
• System clocks, user clocks, jitter attenuated clocks
• 2x SMA MGT input clocks

Power

• 12V wall adapter or ATX

** Switch enables either PCIe Root Port OR SATA, USB2/3 & DisplayPort

▎Download

• https://www.xilinx.com/products/boards-and-kits/ek-u1-zcu102-g.html#hardware
