EK-U1-ZCU106-G

Categories: Zynq

Gallery Item Name

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.

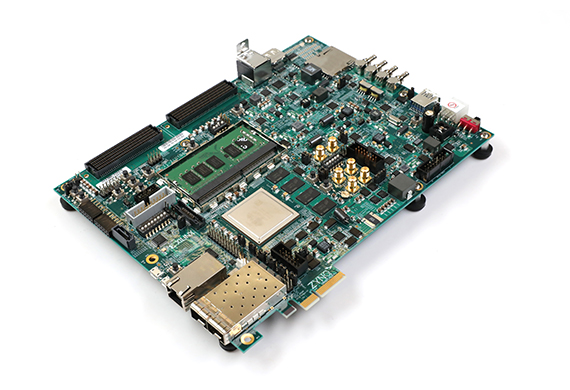

Gallery ▎Description The ZCU106 Evaluation Kit enables designers to jumpstart designs for video conferencing, surveillance, Advanced Driver Assisted Systems (ADAS) and streaming and encoding applications. This kit features a Zynq® UltraScale+™ MPSoC EV device and supports all major peripherals and interfaces, enabling development for a wide range of applications. The included ZU7EV device is equipped with a quad-core Arm® Cortex®-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali™-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic. ▎Key Features

• Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
• Integrated video codec unit supports H.264/H.265
• HDMI video input and output
• PCIe® Endpoint Gen3x4, USB3, DisplayPort & SATA

• DDR4 SODIMM – 72-bit attached to processor subsystem
• DDR4 Component – 64-bit attached to programmable logic
• 2x SFP+ cages
• 2x FPGA mezzanine card (FMC) interfaces for I/O expansion

▎Specification編輯Memory

Communication & Networking

Control & I/O

Power

Clocking

Expansion Connectors

Display

Configuration

▎Download

• https://www.xilinx.com/products/boards-and-kits/zcu106.html#resources
