EK-U1-ZCU208-G

Categories: RFSoC

Gallery Item Name

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.

Gallery ▎Description

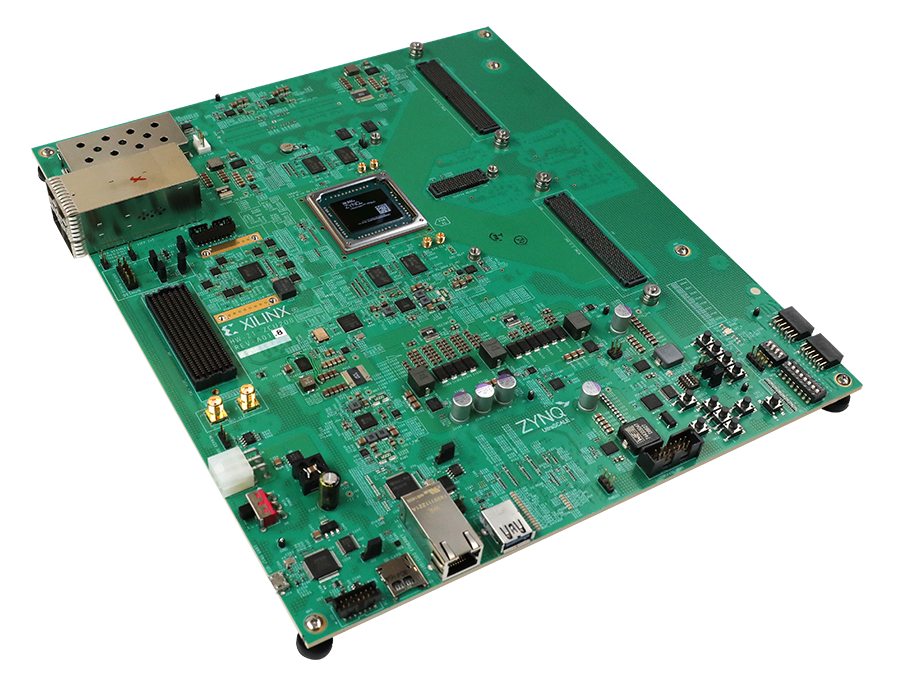

The Zynq® UltraScale+™ RFSoC ZCU208 Evaluation Kit is the ideal RF test platform for both out-of-box evaluation and cutting-edge application development. This kit features a Zynq UltraScale+ RFSoC ZU48DR, which integrates eight 14-bit 5GSPS ADCs, eight 14-bit 10GSPS DACs, and eight soft-decision forward error correction (SD-FEC) cores designed to jumpstart RF class applications. The combination of Arm® Cortex®-A53 and Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, makes the ZCU208 evaluation kit the most comprehensive RF Analog-to-Digital signal chain prototyping platform.

Target Applications:

• Remote PHY for Cable Access
• Early Warning Phased Array Radar / Digital Array Radar
• Satellite Communications

• 5G Wireless
• Test & Measurement
• All High Performance RF Applications

▎Key Features

Industry’s only single-chip adaptable radio platform

• Zynq UltraScale+ RFSoC XCZU48DR-2FSVG1517E silicon featured on the ZCU208 Evaluation board
• Integrated 8x 5GSPS ADC, 8x 10GSPS DAC, 8x SD-FEC design example
• Lidless package for improved thermal dissipation

Comes equipped with all board-level features needed for design development

• DDR4 Component – 4GB, 64-bit, 2666MT/s, attached to programmable logic (PL)
• DDR4 SODIMM – 4GB 64-bit, 2400MT/s, attached to the processing subsystem (PS)
• FPGA Mezzanine Card (FMC+) interface for I/O expansion, including 12x 33Gb/s GTY transceivers and 34 user-defined differential I/O signals
• Quad zSFP/zSFP+ cage assembly
• 8 user-I/O, single-color LEDs

Includes reference design mezzanine cards to reduce development time

• CLK104 RF clock add-on card, showcasing internal reference clocking and external sampling clocking
• XM650 N79 band loopback add-on card allows simple out-of-box loopback and example reference layout for baluns
• XM655 breakout add-on card allows in-depth lab-based measurements including multi-tile synchronization (MTS)

▎Specification Board SpecificationsValueHeight12.225 inch (31.05cm)Width10.675 inch (27.11cm)Thickness (+/-5%)0.119 inch (0.302cm)Operating Environmental Temperature0^◦C to +45^◦CStorage Environmental Temperature–25^◦C to +60^◦CRF Data Converter# of 14-bit RF-ADCs8Max Rate (GSPS)5# of 14-bit RF-DACs8Max Rate (GSPS)10SD-FEC8MemoryPS DDR44GB 64-bit SODIMMPL DDR48GB 64-bit ComponentMicro SD Card16GBM.2 SATA ConnectorYesQSPI2Communications & NetworkingUSB (UART/JTAG)1RJ-451SFP284USB 3.01DisplayDIP SwitchesYesLEDsYes Push ButtonsYesExpansion ConnectorsFMC+1RFMC 2.02Add-on CardsXM6501XM6551CLK1041Control & I/OI2CYesPMBUSYesJTAG PC4 HeaderYesBoot OptionsSD BootYesQSPI BootYesJTAG BootYesPower12V Wall AdapterYesATX Power CompatibleYes ▎Download

• https://www.xilinx.com/products/boards-and-kits/zcu208.html#specifications
