EK-VCK190-G-ED

分類：Versal

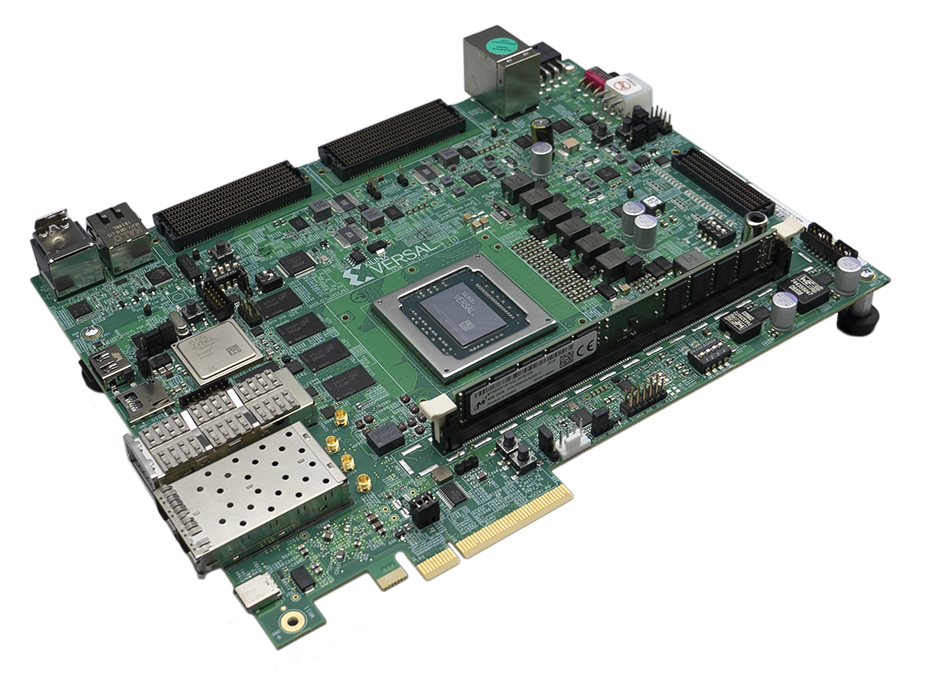

更多圖片▎產品介紹The VCK190 kit is the first Versal™ AI Core series evaluation kit, enabling designers to develop solutions using AI and DSP engines capable of delivering over 100X greater compute performance than today’s server-class CPUs.With a breadth of connectivity options and standardized development flows, the VCK190 kit features the Versal AI Core series VC1902 device, providing the portfolio’s highest AI inference and signal processing throughput.The VCK190 kit is an ideal platform supporting high throughput AI inference and signal processing applications from the cloud to edge, such as:

• Data center compute
• 5G radio & beamforming (DFE)

• Cable-access (Head-End)
• Wireless test equipment

• Automotive/ADAS prototyping
• A&D radar, early warning

▎特色說明

Evaluate Versal AI Core Series Capabilities

• Equipped with Versal ACAP VC1902 production silicon
• AI and DSP Engines providing 100X greater compute over today’s server-class CPUs
• Pre-built partner reference designs for rapid prototyping

Breadth of Connectivity Options for Rapid Application Development

• PCIe® Gen4 interface for high compute performance markets
• HDMI for video processing applications
• SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
• DDR4 and LPDDR4 memory interfaces
• FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors and displays

Co-Optimized Tools and Debug Method

• Vivado® Design Suite, Vitis™ unified software platform, Vitis AI, AI Engine tools

▎產品規格Board SpecificationsValueLength7.477 inHeight9.5 inPCB Thickness (+/-8%)0.066 inOperating Environmental Temperature0°C to +45°CStorage Environmental Temperature–25°C to +60°CConfigurationJTAGYesQSPIYesMicro SD2MemoryDDR4 DIMM8GBLPDDR4 Component8GB (4x16Gb)Micro SD Socket16GBControl I/OUser Pushbuttons6DIP Switches4User LEDs4SYSMONYesSystem ControllerYesPMBUSYesExpansion ConnectorsVITA 57.4 FMC+ (12 GTYs per connector)2PCIe® Gen4 x81Communication & NetworkingUART to USB Bridge1CAN-FD Header1RJ-45 Tri-Speed Ethernet Connectors3SFP282QSFP281DisplayHDMI Video Output1HDMI Video Input1ClockingProgrammable DDR4 DIMM1Programmable LPDDR4 Component2PCIe Reference Clock1HDMI1Programmable zSFP1Programmable HSDP1Programmable 1588 eCPRI4Programmable System Controller1Power180V (12V) Power SupplyYesPower on ResetYes▎資源下載

• https://www.xilinx.com/products/boards-and-kits/vck190.html#hardware
