EK-VMK180-G-ED

分類：Versal

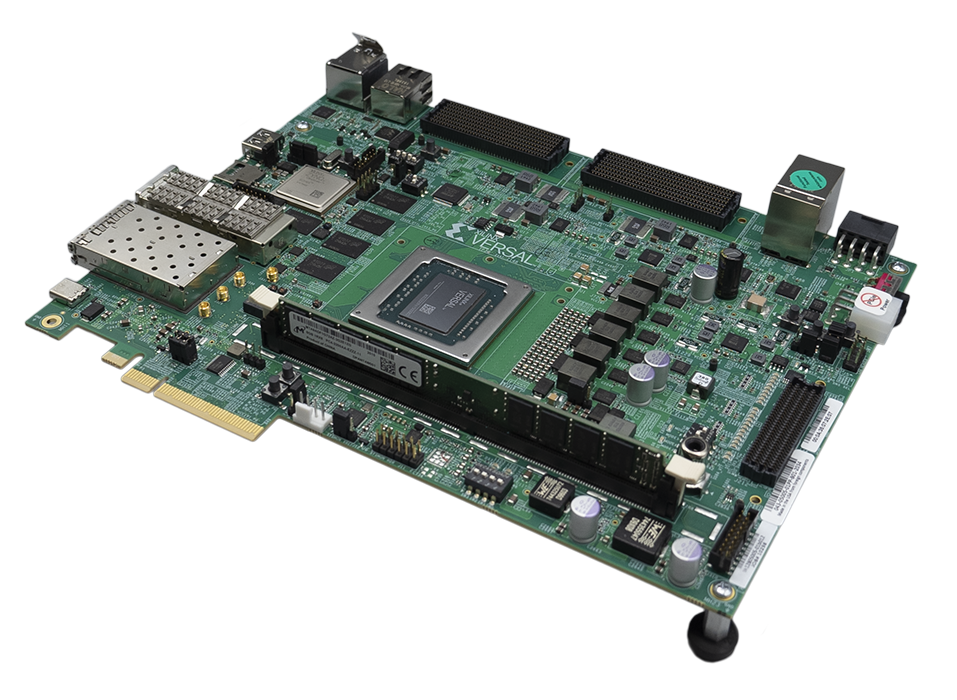

更多圖片▎產品介紹The Versal™ Prime series VMK180 evaluation kit is your fastest path to application bring-up using the world’s first adaptive compute acceleration platform (ACAP).The VMK180 evaluation board features the Versal Prime series VM1802 device, which combines a software programmable silicon infrastructure with world-class compute engines and a breadth of connectivity options to accelerate diverse workloads in a wide range of markets.The VMK180 kit is ideal for a broad range of applications requiring performance and flexibility such as:

• Data center network & storage acceleration
• SmartNIC

• 5G xHaul
• Nx100G Ethernet & OTN networking

• Communications test equipment

▎特色說明

Evaluate Versal Prime Series Capabilities

• Equipped with Versal ACAP VM1802 production silicon
• Jump start HW/SW differentiation with pre-built system infrastructure, enabled by programmable network on chip and integrated shell

Breadth of Connectivity Options for Rapid Application Development

• PCIe® Gen4 interface for high compute performance markets
• HDMI for video processing applications
• SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
• DDR4 and LPDDR4 memory interfaces
• FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors and displays

Co-Optimized Tools and Debug Method

• Vivado® Design Suite, Vitis™ unified software platform

▎產品規格Board SpecificationsValueLength7.477 inHeight9.5 inPCB Thickness (+/-8%)0.066 inOperating Environmental Temperature0°C to +45°CStorage Environmental Temperature–25°C to +60°CConfigurationJTAGYesQSPIYesMicro SD2MemoryDDR4 DIMM8GBLPDDR4 Component8GB (4x16Gb)Micro SD Socket16GBControl I/OUser Pushbuttons6DIP Switches4User LEDs4SYSMONYesSystem ControllerYesPMBUSYesExpansion ConnectorsVITA 57.4 FMC+ (12 GTYs per connector)2PCIe® Gen4 x81Communication & NetworkingUART to USB Bridge1CAN-FD Header1RJ-45 Tri-Speed Ethernet Connectors3SFP282QSFP281DisplayHDMI Video Output1HDMI Video Input1ClockingProgrammable DDR4 DIMM1Programmable LPDDR4 Component2PCIe Reference Clock1HDMI1Programmable zSFP1Programmable HSDP1Programmable 1588 eCPRI4Programmable System Controller1Power180V (12V) Power SupplyYesPower on ResetYes▎資源下載

• https://www.xilinx.com/products/boards-and-kits/vmk180.html#hardware
