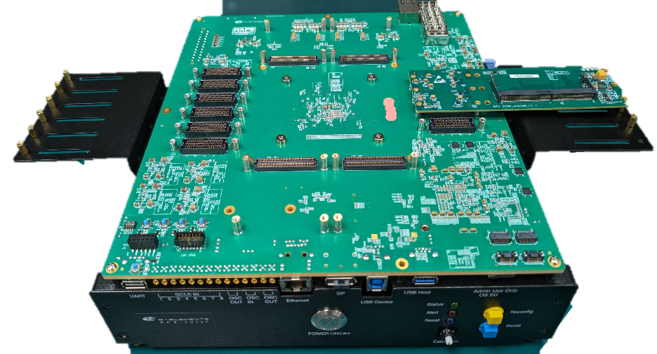

EPS -VU13P

Gallery Item Name

                       Gallery                                                                                                            ▎Description

▎Key Features

• Selectable I/O voltage for HapsTrak 3 daughter board slots
• Configurable global clocks
• Real-time monitoring of voltage/current and temperature
• Physical JTAG Programming
• Selectmap programming over ethernet
• Xilinx Virtual Cable Programming

• 1 Xilinx Virtex UltraScale+ XCVU13P FHGB2104 FPGA
• 4 samtec APF6 connector ( 72 pairs GTY transceivers@25Gbps )
• 10 HapsTrak 3 connectors ( 500 user IO @1.6G bps (LVDS) )
• 1 on-board DDR4 16bit SDRAM 1GB
• 1 PMOD connectors
• QSFP28 support 10G/40G/50G/100G Application
• RJ45 10/100/1000M RGMII PHY chip(88E1518)

• HDMI_HT3_v1.1
