PYNQ-ZU

Categories: XUP/PYNQ

Gallery Item Name

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.

Gallery ▎Description

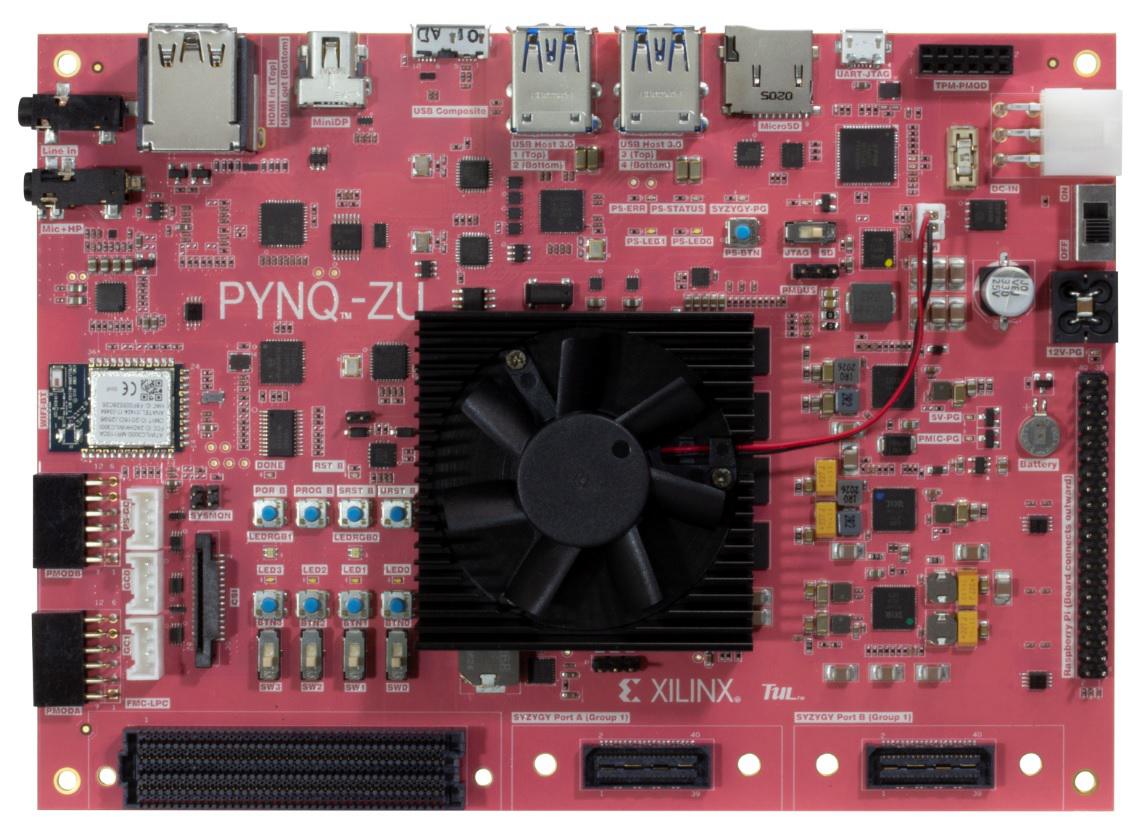

TUL PYNQ™-ZU board, based on Xilinx Zynq UltraScale+ MPSoC, is designed for the Xilinx University Program to support the Xilinx PYNQ (Python Productivity for Zynq) open source framework (please refer to the PYNQ project webpage at www.pynq.io) and embedded systems development.

▎Key Features▎Specification

Zynq UltraScale+ XCZU5EG-1SFVC784 MPSoC
　• Quad core ARM Cortex-A53, Dual R5 processors
　• DDR4 memory controller with 8 DMA channels and
　　4 High Performance AXI3 Slave ports

Memory
　• 4GB DDR4 2400R (64 bits wide)
　• MicroSD slot

USB and JTAG
　• Micro USB-JTAG programming circuitry
　• Micro USB-UART bridge
　• USB 3.0 OTG PHY (supports host only)
　• USB Composite 3.0

▎Download

• PYNQ-ZU User Manual (PDF)
• PYNQ-ZU Boot Image
  • V2.7
  • V3.0.1
• PYNQ-ZU Board File
• PYNQ-ZU Master XDC

• Zynq UltraScale+ Datasheet (PDF)
• Zynq UltraScale+ Technical Reference Manual (PDF)
• PYNQ-ZU Schematics (PDF)
